Unlocking the 51.2V 100Ah LiFePO4 Battery: Why Rugged Internal Design and IEC 62619 Certification Matter for Golf Carts and Marine Power

When sourcing power solutions for high-demand applications like golf carts or marine vessels, B2B buyers and OEMs prioritize three critical factors. These are unshakeable safety, consistent power output, and exceptional physical durability. After all, equipment failure in the field or on the water is simply not an option.

Designed specifically to tackle these harsh environments, our 51.2V 100Ah Lithium Iron Phosphate (LiFePO4) battery stands out from the competition. It combines meticulous internal engineering with globally recognized safety certifications. Therefore, let us take a closer look inside the battery to understand why it is the premier choice for your next project.

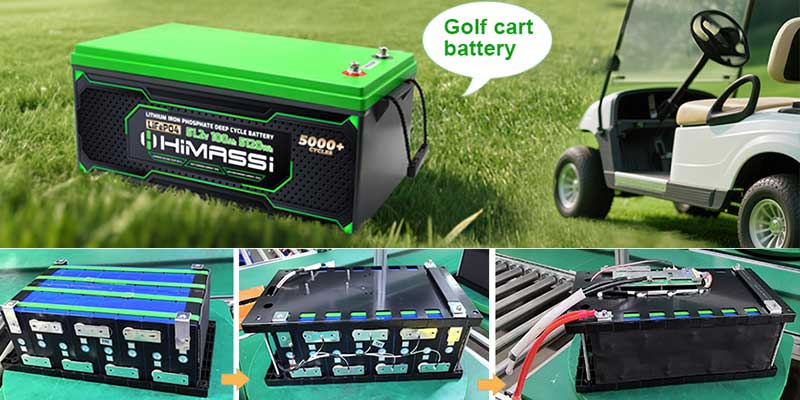

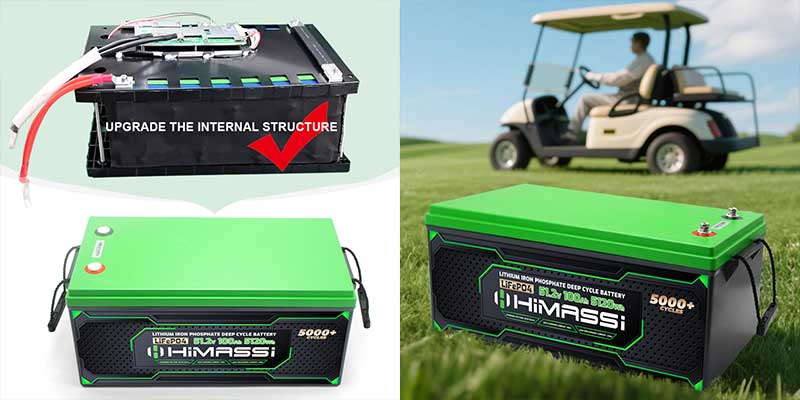

1. Engineered for Impact: A Vibration-Proof Internal Structure

Golf carts navigating rough terrain and boats cutting through choppy waters subject their batteries to constant vibration and mechanical stress. In reality, a battery is only as reliable as its internal assembly. Consequently, we have fortified every level of its construction.

• Secured Cell Architecture:

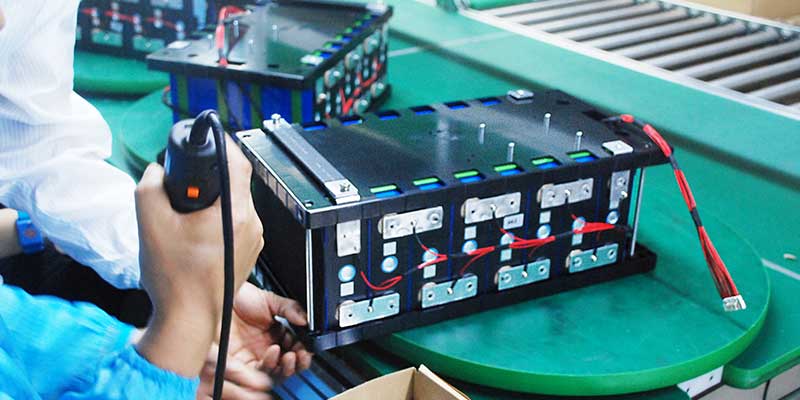

  The core of this battery pack consists of 16 premium PF160-100A lithium-ion cells. These are arranged in a 16S1P configuration. However, rather than relying on basic strapping, each cell is firmly locked into place using dedicated PC/ABS structural brackets. This design prevents physical displacement and effectively eliminates the risk of internal short circuits caused by heavy vibrations.

• Industrial-Grade Protection:

  The exterior features a rugged, 2.5mm thick ABS plastic casing. Notably, it achieves an IP65 rating to protect against water and dust intrusion. Furthermore, the material is also V-0 flame retardant. This ensures structural stability even in temperatures reaching 80°C.

• High-Current Wiring:

  To safely handle massive energy transfers without overheating, we utilize 6AWG silicone wiring in the internal circuitry. This wiring is capable of withstanding up to 200°C. Moreover, it is paired with heavy-duty pure copper terminals. Together, these components guarantee low impedance and minimal heat generation during peak operation.

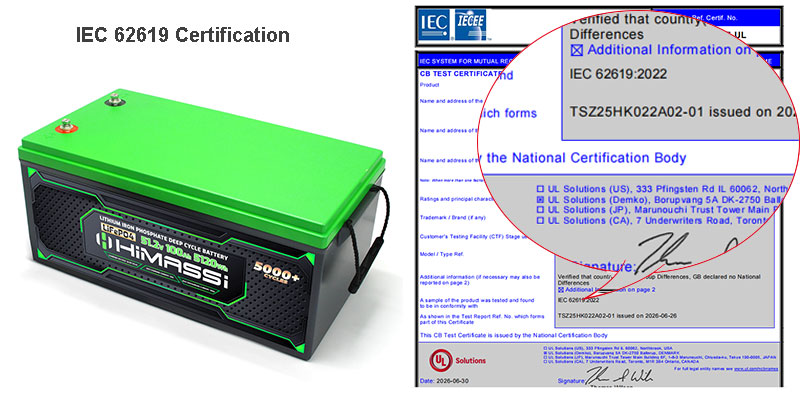

2. Uncompromising Safety: Backed by IEC 62619

In industrial and marine energy storage, safety must be independently verified. Our 51.2V 100Ah battery pack (Model: LAF48100) has successfully passed rigorous global standards, earning both the IEC 62619 certification and a CB Test Certificate.

📄 Verify Our Credentials: Transparency is core to our manufacturing process. We encourage all our B2B partners to review our official safety testing documentation: [➔ Click Here to View and Download the Complete IEC 62619 & CB Test Certificates (PDF)]

• Tested Under Extremes:To achieve IEC 62619 compliance, this battery group passed severe physical and electrical testing—including drop tests, overcharge voltage/current control, and thermal runaway protocols—with zero instances of fire or explosion.
• Intelligent Class B BMS:The battery is governed by an advanced Battery Management System (BMS) that meets the safety integrity level of IEC 60730-1 Class B. It acts as the brain of the battery, proactively delivering precise protection against overcharging, over-discharging, overcurrent, short circuits, and extreme temperature fluctuations.



Note: Our commitment to safety extends across our entire manufacturing lineup. Our popular 12V series (including 12V 120Ah, 200Ah, 230Ah, and 400Ah capacities) also carry full IEC 62619 certification, ensuring total peace of mind regardless of the required voltage.

3. What This Means for Your Fleet and Customers

Understanding the specs is one thing, but how does this translate to operational success for your golf carts or marine motors?

• Surge Power on Demand:

  With a maximum continuous discharge current of 200A, this battery effortlessly handles the intense initial startup surges of electric trolling motors or the sustained high-torque required when a fully loaded golf cart climbs a steep incline. You can explore our dedicated Electric Trolling Motors Battery page for more insights on motor compatibility.

• Dramatic Weight Reduction:

  Weighing in at approximately 37.50 kg, this LiFePO4 unit is roughly 60% lighter than a traditional lead-acid battery of the same capacity. In marine applications, shedding excess weight means increased speed and better buoyancy; for golf carts, it translates to less turf wear and extended range. See our Boat Battery section for specialized aquatic solutions.

• Lower Total Cost of Ownership:

  Tested to deliver over 2,000 cycles at 0.2C charge/discharge rates and 100% Depth of Discharge (DOD), this battery will outlast standard alternatives by years. For fleet managers and boat owners, this drastically cuts down on replacement cycles and maintenance downtime.

Whether you are designing a durable fleet of utility vehicles or outfitting watercraft with safe, waterproof energy, the 51.2V 100Ah battery offers the structural integrity and certified safety your customers demand.

Ready to upgrade your power solutions? Visit our Contact page to speak directly with our factory engineering team about detailed product specifications or OEM customization options.

About the Author Alden | Battery Engineer – Manufacturing & Quality Control With hands-on experience in battery pack manufacturing, I oversee our production processes, aging tests, and rigorous quality inspections. My goal is to ensure consistent performance, low defect rates, and a highly stable supply chain for all our OEM partners.
