Our intelligent BMS extends battery life by 30% in the same form factor.
Exceed industry standards with our S-Tier Safety Testing Protocol for total compliance.
Fit powerful, custom batteries into award-winning designs with our miniaturization expertise.

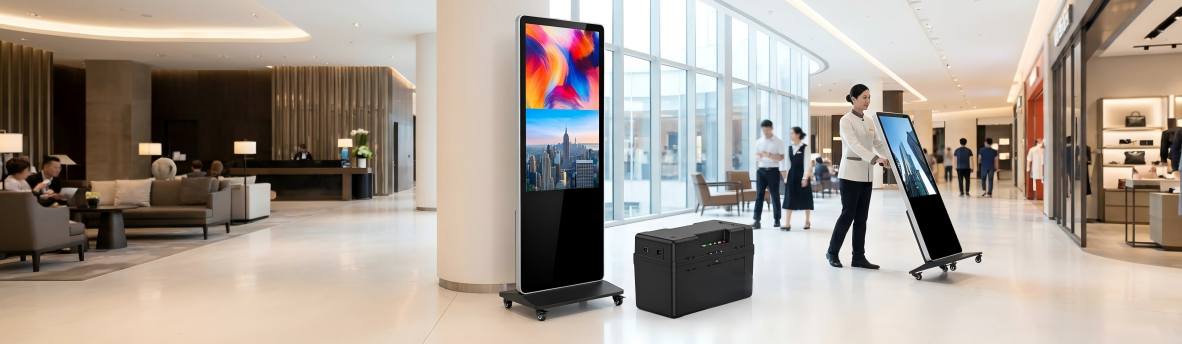

Unlike stationary monitors tied to wall outlets, mobile digital signage—deployed in bustling hotel lobbies, retail concourses, and open exhibition halls—requires independent, robust power architectures. At HIMAX ELECTRONICS, our engineering team draws on deep power management research to design bespoke lithium battery packs that free your displays from cumbersome, trip-hazard power cords.
Our highly integrated power modules are optimized to deliver:
Moving away from the bulk and rapid degradation of traditional lead-acid alternatives, our lithium solutions drastically reduce the hardware’s center of gravity weight while effectively doubling the active runtime.
→ Consult our technical team to match a reliable power module to your signage’s daily energy consumption.
Deploying portable electronics in high-traffic public zones demands uncompromising, rigorously tested safety standards. Recognizing the catastrophic risks of hardware failure in crowded areas, HIMAX ELECTRONICS prioritizes cell stability above all else, utilizing advanced lithium chemistries that inherently resist thermal runaway even under severe physical abuse.
Our critical safety integrations and certifications feature:
We supply complete, transparent factory testing documentation, drastically streamlining your final product’s regulatory certification process.
→ Request our comprehensive safety testing dossiers for public-domain electronic displays.
Retailers and event organizers rely on continuous advertising visibility; a dead screen in the middle of a promotional event equals immediate lost revenue. Rather than relying on theoretical capacity data, HIMAX ELECTRONICS evaluates battery performance against simulated 12-to-16-hour high-brightness video playback cycles, ensuring real-world reliability.
Strategic operational advantages include:
These resilient energy storage systems ensure your digital message remains brightly illuminated exactly when your target audience is watching.
→ Ask for custom discharge curve analyses based on your specific screen size and brightness metrics.

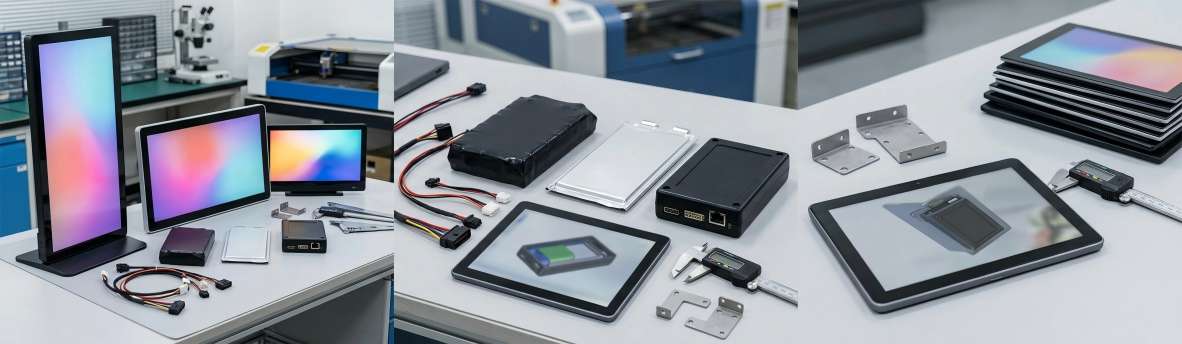

Modern digital sandwich displays are designed to be visually striking and ultra-thin, leaving extremely limited internal space for components. HIMAX ELECTRONICS offers deep structural customization, ensuring our battery packs integrate invisibly and efficiently into your sophisticated hardware blueprints.
Our bespoke engineering options cover:
By collaborating directly with your industrial designers, we transition rapidly from initial 3D spatial concepts to fully functional power prototypes.
→ Share your dimensional CAD constraints with us for a bespoke, space-saving energy proposal.
Supplying large global retail chains requires aggressive production scaling coupled with absolute product consistency. Our digital signage batteries are manufactured under strict, automated management systems to guarantee flawless, zero-defect shipments regardless of order volume.
Key manufacturing highlights include:
This meticulous oversight drastically minimizes RMA rates and actively protects your brand’s reputation in the competitive commercial hardware sector.
→ Contact us to explore our automated pack assembly facilities and capacity scaling.
Shipping high-capacity energy storage systems for commercial displays involves navigating a labyrinth of stringent international dangerous goods freight regulations. HIMAX ELECTRONICS expertly manages this logistical complexity, keeping your international supply chain entirely fluid and predictable.
Our comprehensive logistics services encompass:
→ Consult our logistics specialists to map out the most efficient, compliant delivery route for your next hardware rollout.
Q1: What type of battery is best for portable digital signage?
LiFePO4 and highly stable Li-ion cells are optimal. They offer maximum safety for crowded public spaces and deliver thousands of deep cycles for daily commercial operations.
Q2: Can the battery pack fit into ultra-slim display enclosures?
Yes. HIMAX ELECTRONICS designs custom flat-pack configurations engineered specifically to slide into heavily space-constrained sandwich boards and A-frames.
Q3: How long can a digital A-board run on your battery solutions?
Depending on the LED/LCD screen’s power draw, our bespoke packs are built to guarantee 10 to 16 hours of continuous runtime, easily covering a full business day.
Q4: Are your signage batteries certified for the European and US markets?
Absolutely. Our packs are explicitly engineered to comply with CE, UN38.3, UL, and RoHS directives, ensuring frictionless market entry.
Q5: Do you supply batteries suitable for outdoor, weather-resistant signage?
Yes. We provide battery systems featuring IP-rated waterproof enclosures and wide-temperature cells (-20°C to 60°C) for reliable outdoor public deployments.

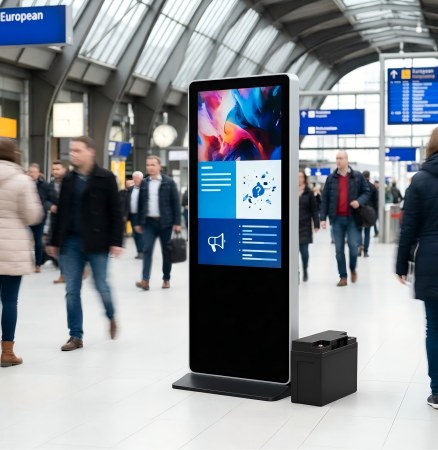

Eliminating Trip Hazards in Public Transit Hubs
Client Background:
A prominent European provider of digital signage solutions serving major transportation hubs, retail concourses, and open-plan exhibitions.
The Pain Point:
Operating high-brightness displays continuously in open spaces traditionally required routing power cables across pedestrian walkways. This not only created severe tripping hazards in crowded transit centers but also heavily restricted where the signage could be placed.
→ The Goal: The client urgently needed a fully independent, internal power source capable of running a control system and screen for a continuous 12-hour shift without grid reliance, while ensuring absolute fire safety in high-density public areas.
· The Configuration: After analyzing the display’s daily watt-hour draw, HIMAX ELECTRONICS engineered a precisely tailored 12.8V 36Ah LiFePO4 Battery Pack (460.8Wh) utilizing a highly stable 4S6P cell configuration.

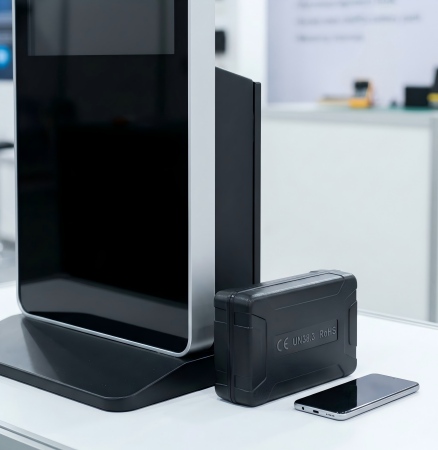

· Mechanical Integration: Measuring just 235 × 137 × 67 mm and weighing approximately 3.5 kg, the pack was designed to sit securely in the base cabinet of the signage. This compact footprint preserved internal space for electronics while significantly lowering the display’s center of gravity to prevent tipping.
→ Smart Protection: The system was integrated with a custom PCM/BMS, silently guarding against over-discharge during long exhibition days and preventing overcurrent anomalies during rapid overnight charging cycles.
· Rapid Market Entry: Utilizing our mature production model framework, the customized pack was delivered with full, verified documentation, smoothly clearing UN38.3, CE, and RoHS compliance hurdles for European distribution.
· Uninterrupted ROI: The 460.8Wh capacity successfully delivered uninterrupted, stable power for the client’s demanding full-day operational parameters.
→ Long-Term Value: More importantly, by leveraging LiFePO4 chemistry, the battery boasts a verified lifespan of up to 2000 cycles (with ≥80% capacity retention). This effectively eliminated the client’s battery replacement costs for years, enabling them to confidently market a truly “place-anywhere,” maintenance-free commercial display.
Shawn
Battery Engineer
– Power System Design
With over 10 years of experience in lithium battery system design, he specializes in Li-ion, LiFePO4, and LiPo battery packs. His expertise includes BMS integration, thermal management, and custom power solutions for medical and consumer devices.
Dawn
Battery Engineer
– Safety & Compliance
A senior battery engineer focused on safety, testing, and certification. She has extensive experience with UN38.3, IEC 62133, IEC 62619, and CE compliance, supporting battery solutions for medical, industrial, and portable electronic applications.
Joan
Battery Engineer
– Custom Pack Development
Specializing in custom battery pack development, he works closely with OEM clients to optimize voltage, capacity, and form factor. His work supports scalable mass production with strict quality control and long-term reliability.
Alden
Battery Engineer
– Manufacturing & Quality Control
With hands-on experience in battery pack manufacturing, he oversees production processes, aging tests, and quality inspections. His work ensures consistent performance, low defect rates, and stable supply for OEM customers.
Caleb
Battery Engineer
– BMS & Protection Systems
Focused on battery management systems and protection design, she develops PCM/BMS solutions with overcharge, over-discharge, thermal, and short-circuit protection to enhance safety and operational stability across applications.
Nath
Battery Engineer
– Cell Selection & Performance
An experienced battery engineer specializing in cell evaluation and performance optimization. He focuses on energy density, discharge stability, and cycle life, ensuring reliable battery packs for medical and consumer electronic applications.
Certification scope depends on target markets and device classification and should be considered during battery design.
View the full list of battery certifications and compliance standards on our Certification page.
We respond within 1 business day.
