NiMH AAA 4.8V 800mAh Battery Pack for Mechanical Equipment Testing

In the world of industrial quality control and field inspection, mechanical equipment testing relies on precision instruments that must perform consistently — often in harsh environments, remote locations, or on fast-moving production lines. Behind every accurate hardness reading, every vibration measurement, every ultrasonic scan, there is a power source doing quiet, critical work. The NiMH AAA 4.8V 800mAh battery pack is engineered specifically for this role.

This article explores how the 4.8V 800mAh battery pack meets the demanding power requirements of mechanical equipment testing tools, why NiMH chemistry is the preferred choice for European industrial buyers, and how Himax Electronics ensures full compliance with EU regulations including (EU) 2023/1542 for export to Germany and the broader European market.

Why Mechanical Equipment Testing Demands Reliable Battery Power

The Challenge of Unstable Power in Field Testing

Field-based mechanical testing devices such as portable hardness testers, vibration analyzers, and torque meters are frequently deployed away from fixed power supplies. Engineers and quality inspectors carry them onto factory floors, construction sites, and assembly lines. In these settings, therefore, battery performance directly affects measurement reliability. Voltage drops mid-test, inconsistent discharge curves, and batteries that fail in cold warehouse environments are not just inconveniences — they invalidate measurements and disrupt workflows.

Although alkaline batteries are inexpensive, they suffer from a steep and unpredictable voltage decline during discharge. Lithium-ion packs offer high energy density but introduce thermal management complexity, stricter transport regulations (IATA Class 9), and higher replacement costs. As a result, neither option is ideal for low-to-mid power instruments operating at currents of 50mA or below.

How NiMH Chemistry Solves It

Nickel-Metal Hydride (NiMH) chemistry delivers a stable, flat discharge curve at 1.2V per cell — making a 4S1P configuration (four cells in series) a reliable 4.8V power source from start to near-end of discharge. This voltage flatness is exactly what precision instruments need. As a result, sensor readings remain stable, microcontrollers operate reliably, and display brightness stays consistent throughout the test session.

In addition, the NiMH AAA 4.8V format brings environmental advantages. It contains no cadmium (unlike older NiCd chemistries), no lithium, and is fully recyclable under EU battery recovery schemes — a key differentiator for German and European procurement teams subject to WEEE and battery take-back obligations.

Product Specifications: NiMH AAA 4.8V 800mAh Battery Pack

Electrical & Mechanical Parameters

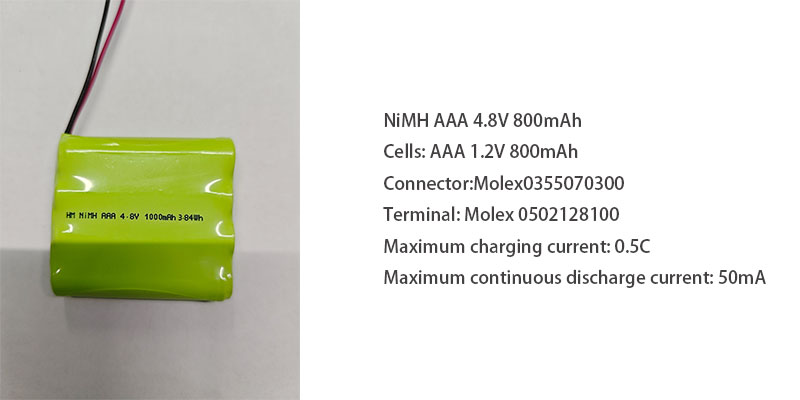

The Himax NiMH AAA 4.8V 800mAh pack is built on a 4S1P configuration of four AAA-size NiMH cells, each rated at 1.2V and 800mAh. This results in a nominal pack voltage of 4.8V with a total energy capacity of 3.84Wh — sufficient for extended use in instruments drawing 50mA or less, delivering over 16 hours of continuous low-drain operation in ideal conditions.

Parameter	Specification
Pack Model	NiMH AAA 4.8V 800mAh
Cell Chemistry	Nickel-Metal Hydride (NiMH)
Configuration	4S1P (4 cells in series)
Cell Specification	NiMH AAA 1.2V 800mAh
Nominal Voltage	4.8V
Capacity	800mAh
Energy	3.84Wh
Max Charge Current	≤0.5C (≤400mA)
Max Continuous Discharge	50mA or less
Enclosure	Green PVC heat shrink
Marking / Ink-jet Code	HM NiMH AAA 4.8V 800mAh 3.84Wh

Configuration & Connector Details

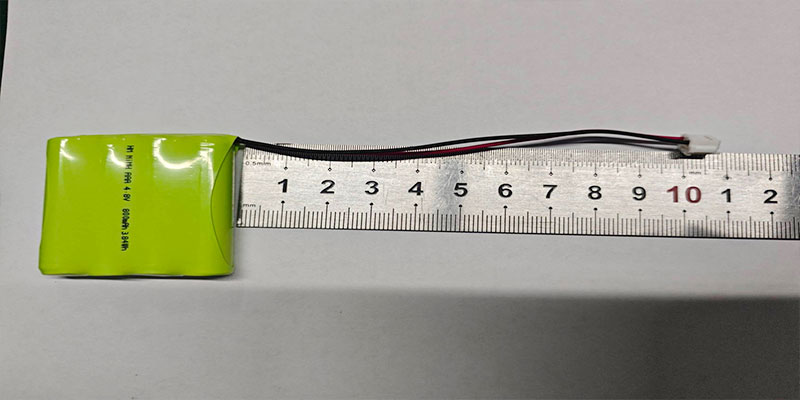

The pack arranges all four cells in a single flat row. This design helps minimize the physical footprint for space-constrained instrument housings. The external lead length is 100mm, wired to an industry-standard Molex connector system (Connector: Molex 0355070300; Terminal: Molex 0502128100), ensuring compatibility with a wide range of OEM instrument PCB designs. Wire gauge is selected according to the current rating, with no over-engineering that adds unnecessary bulk.

The green PVC heat-shrink enclosure provides electrical insulation, mechanical protection, and a clean printable surface for regulatory markings — including the mandatory ink-jet code and EU-required QR code label for battery traceability.

Key Application Scenarios in Mechanical Testing Equipment

The 4.8V 800mAh battery pack is designed to be a direct-fit solution across a broad range of mechanical equipment testing instruments. Below are the most common and commercially significant application categories.

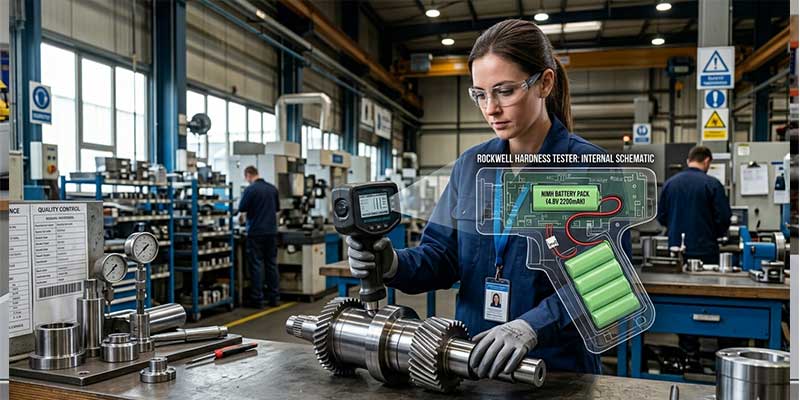

Portable Hardness Testers

Portable Rockwell, Vickers, Brinell, and Leeb hardness testers are among the most widely used field instruments in metalworking, automotive manufacturing, and aerospace quality control. These handheld devices typically draw 30–50mA during standby and measurement cycles, placing them perfectly within the optimized discharge range of the AAA NiMH rechargeable battery pack.

NiMH’s flat discharge curve ensures that hardness readings remain accurate across the full battery cycle — a critical factor since many instruments use battery voltage as a reference for impact energy calibration in Leeb rebound testers. Using a battery with a declining voltage output (such as alkaline) can introduce systematic measurement drift that is difficult to detect without a calibration check.

Vibration Analyzers & Measurement Instruments

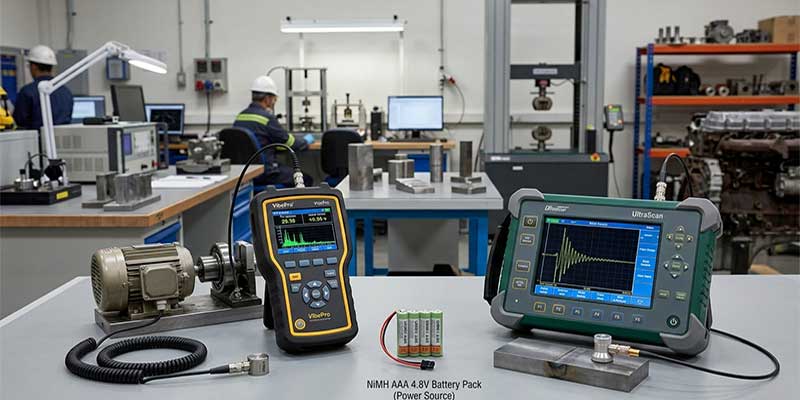

Vibration meters, accelerometers, and FFT analyzers used in predictive maintenance programs require continuous operation over full shift periods. For example, a field technician monitoring rotating machinery in a paper mill or automotive plant cannot afford battery interruptions. The 4.8V NiMH battery pack’s 800mAh capacity supports extended measurement sessions, while its sealed PVC construction provides resilience against the dust, oil mist, and humidity typical in industrial environments.

Low self-discharge variants of NiMH chemistry (LSD-NiMH) retain over 70% of their charge after 12 months of storage — meaning instruments that sit in a toolbox between quarterly maintenance rounds are ready to use when needed, without an emergency charge cycle.

Torque & Force Testing Devices

Digital torque wrenches, torque analyzers, and force gauges used in assembly line calibration and quality assurance need a stable power supply that does not affect the analog-to-digital conversion chain. The NiMH AAA 4.8V cell configuration delivers a regulated supply rail that minimizes noise injection into sensitive strain gauge amplifier circuits. At a 50mA drain level, the pack operates well within the electrochemical sweet spot of NiMH cells, producing minimal internal voltage drop and maximum output stability.

Ultrasonic Flaw Detectors (NDT Equipment)

Non-destructive testing (NDT) is a cornerstone of mechanical equipment testing in industries from oil & gas pipelines to rail infrastructure inspection. Ultrasonic flaw detectors, thickness gauges, and phased array UT systems are typically handheld instruments that operate at low average currents between pulse bursts. The 4.8V 800mAh battery pack provides the stable baseline voltage these instruments require, while the Molex connector interface allows easy battery swap in multi-shift operations.

Moreover, for German and EU-based NDT service providers, this CE-marked battery pack simplifies procurement and reduces regulatory obstacles when sourcing replacement packs across EU member states.

Data Loggers & Field Measurement Devices

Environmental data loggers, pressure data recorders, and multi-channel measurement systems used in mechanical testing labs often run unattended for hours. Their microcontrollers, sensors, and wireless communication modules may draw as little as 10–20mA in sleep mode, spiking to 50mA during active sampling and data transmission. The AAA 800mAh 4.8V pack handles this variable load profile efficiently, with NiMH chemistry showing excellent charge retention even under pulsed discharge patterns.

Industrial Remote Controllers & Handheld Calibrators

Test bench remote controls, handheld calibration tools, and wireless instrument triggers are another substantial application category. These devices require compact batteries — the 4S1P single-row flat layout of the NiMH AAA 4.8V 800mAh pack fits naturally into slim-profile housing designs. The standard 4.8V bus voltage directly drives common microcontroller and RF module power rails without requiring a boost converter, simplifying instrument PCB design and reducing component count.

NiMH vs. Lithium vs. Alkaline: Why Choose NiMH for Testing Equipment

When specifying batteries for mechanical testing instruments, procurement engineers and OEM designers typically evaluate three main chemistries. The table below summarizes the key trade-offs for low-drain instrument applications:

Criterion	NiMH AAA 4.8V	Li-Ion / LiPo	Alkaline
Discharge curve	Flat (stable voltage)	Flat (needs BMS)	Sloping (voltage drops)
Rechargeability	500+ cycles	300–500 cycles	Single use
EU transport (air)	No restriction	IATA Class 9 limits	No restriction
RoHS / EU compliance	Full compliance	Requires BMS / safety IC	Compliant but disposable
Low-temp performance	Good (–20°C capable)	Degrades below 0°C	Degrades significantly
Total cost of ownership	Low (rechargeable)	Medium–High	High (repeat purchase)
Environmental impact	Low (recyclable, no Cd)	Medium (Li recovery)	High (single use waste)

For instruments drawing 50mA or less, lithium chemistry’s high energy density is largely unnecessary — the additional weight, cost, and transport complexity are not justified. Meanwhile, alkaline batteries are less suitable because of their sloping discharge curve and single-use waste generation. NiMH — specifically the NiMH AAA rechargeable battery in 4.8V pack format — emerges as the optimal balance of performance, compliance, and lifecycle economics for this application class.

EU Compliance & Certifications for the German Market

Exporting battery-powered products to Germany and the European Union requires navigating a comprehensive regulatory framework. Himax Electronics ensures every 4.8V NiMH battery pack shipped to the EU market is fully compliant with current and forthcoming regulations.

EU Battery Regulation (EU) 2023/1542

The EU Battery Regulation (EU) 2023/1542, which supersedes the previous Battery Directive 2006/66/EC, establishes new mandatory requirements for all batteries placed on the EU market. Key obligations relevant to the NiMH AAA 4.8V 800mAh pack include:

• Mandatory carbon footprint declarations for industrial batteries above defined capacity thresholds (phased timeline from 2025–2028)
• Battery passport requirements, enabling traceability of battery materials and end-of-life handling — addressed via the QR code on the battery label
• Supply chain due diligence for sourcing of critical raw materials including nickel and cobalt
• Minimum recycled content requirements for nickel, with phased compliance deadlines
• Mandatory collection and take-back scheme registration in each EU member state, including Germany (Batteriegesetz — BattG)

Himax Electronics works with EU-accredited certification bodies to ensure alignment with (EU) 2023/1542 obligations as they come into force, providing customers with the documentation required for customs clearance and market placement in Germany.

CE Certification & Declaration of Conformity

All Himax NiMH battery packs destined for EU markets carry the CE mark, supported by a full Declaration of Conformity (DoC). The CE assessment covers applicable EU directives including the Low Voltage Directive (LVD) 2014/35/EU, the EMC Directive 2014/30/EU, and the RoHS Directive 2011/65/EU as amended. Testing is conducted in accordance with harmonized European standards, ensuring acceptance by German customs authorities (Bundeszollverwaltung) and conformity with German market surveillance requirements under the Produktsicherheitsgesetz (ProdSG).

Battery Label & QR Code Requirements

Under (EU) 2023/1542 and existing battery labeling standards, each battery pack must carry clearly legible mandatory information. The Himax NiMH AAA 4.8V 800mAh pack label includes:

• Battery chemistry identification: NiMH
• Nominal voltage and capacity: 4.8V / 800mAh / 3.84Wh
• Manufacturer code: HM (Himax)
• Crossed-out wheeled bin symbol (WEEE / separate collection requirement)
• Chemical hazard symbols as applicable
• QR code (printed directly on the battery label) linking to the EU Battery Passport information page — in compliance with EU Regulation requirements for battery traceability and end-of-life management

The QR code is printed to ISO/IEC 18004 standards, scannable by both consumer smartphone cameras and industrial barcode readers, ensuring compliance with the digital traceability mandate under the EU’s evolving battery passport framework.

Himax Electronics: OEM/ODM Customization & Export Support

Himax Electronics specializes in custom NiMH and lithium battery pack manufacturing for industrial, medical, and consumer instrument applications. For OEM customers integrating the 4.8V 800mAh NiMH AAA battery pack into their mechanical testing equipment, Himax offers comprehensive customization and support services:

• Custom connector types and wire configurations beyond the standard Molex 0355070300 / 0502128100 interface
• Custom lead lengths (standard: 100mm; alternatives available on request)
• Custom ink-jet marking and label printing including customer brand, model codes, and EU-compliant QR codes
• Alternative enclosure options including custom-molded hard cases for high-vibration environments
• OEM rapid prototyping with sample lead times typically within 7–10 business days
• Full EU compliance documentation package including CE Declaration of Conformity, test reports, and battery regulation compliance letters for German customs and regulatory filings

Our engineering team works directly with instrument designers to optimize battery pack geometry, connector placement, and charging circuit specifications — ensuring seamless integration from prototype to production volume.

Ready to source the right NiMH battery for your mechanical testing instrument? Contact Himax Electronics for a free sample, custom quotation, or EU compliance documentation package. Our team supports German and EU OEM customers from initial specification through to series production.

Conclusion

The NiMH AAA 4.8V 800mAh battery pack represents a purpose-built solution for the power requirements of modern mechanical equipment testing instruments. Its stable 4.8V output, 800mAh capacity, low self-discharge characteristics, and compact 4S1P single-row form factor address the core operational demands of portable hardness testers, vibration analyzers, torque meters, NDT equipment, and data loggers.

For OEM manufacturers and procurement teams targeting the German and EU market, the combination of CE certification, full compliance with (EU) 2023/1542, and a battery label with EU-standard QR code traceability eliminates the regulatory complexity that often delays product launches and customs clearance in Europe.

Himax Electronics brings together technical manufacturing capability and EU compliance expertise to deliver AAA NiMH rechargeable batteries that meet the exacting standards of industrial instrument applications — backed by OEM customization flexibility and dedicated export support for the European market.
