Custom 3.7V 750mAh LiPo Battery | 503442 Pouch Cell

Brand new factory customized Li-polymer battery pack 3.7V 750mAh long life cycle

Product Model: LiPo 503442 3.7V 750mAh

Product Description:

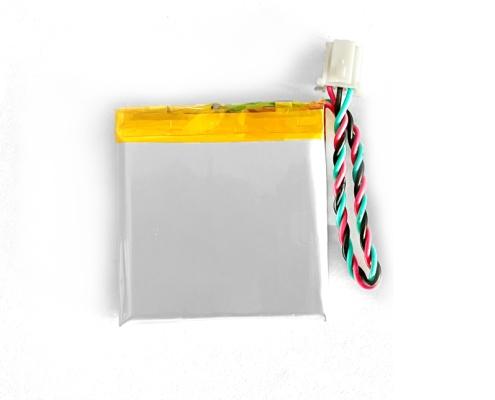

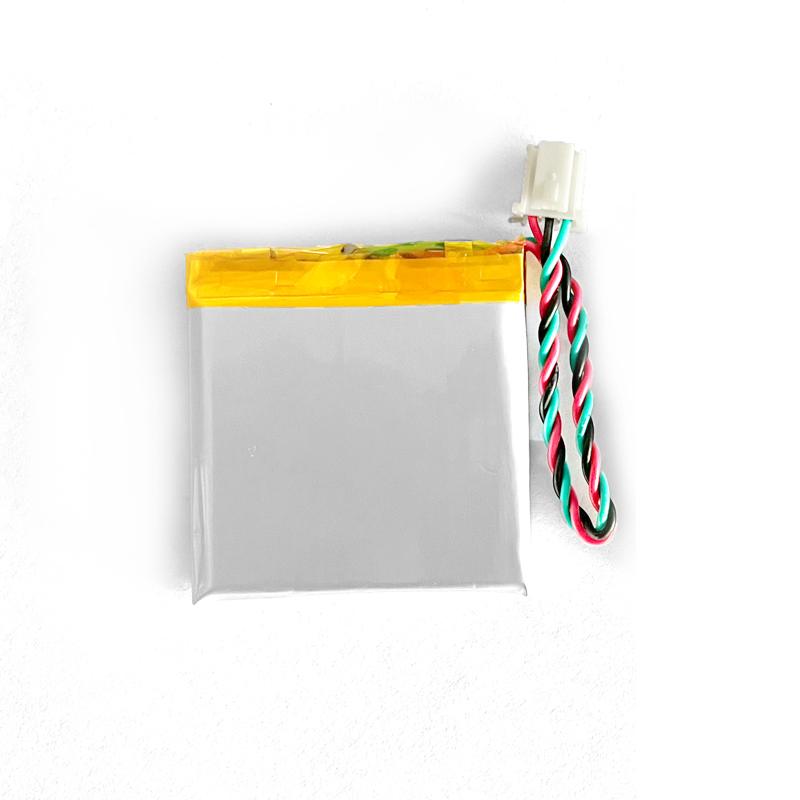

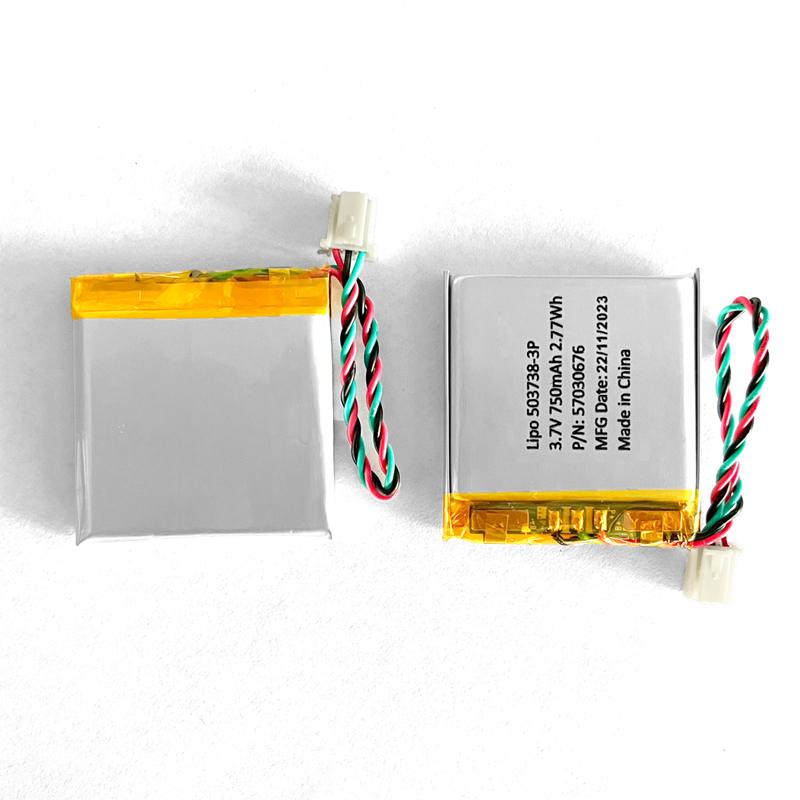

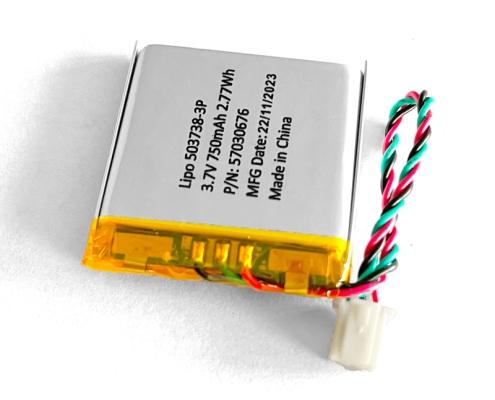

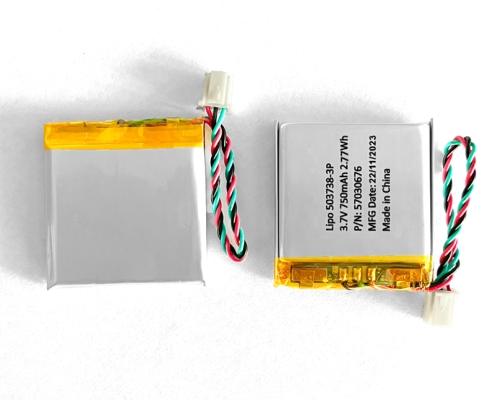

The 3.7V 750mAh LiPo battery is a compact 503442 pouch cell designed for portable and space-constrained electronic devices. With a 3.7V nominal voltage, 750mAh rated capacity, and 2.78Wh energy, it provides a lightweight power solution for OEM products that require a slim rechargeable battery.
The battery supports CC/CV charging with a 4.2V maximum charge voltage and a standard 150mA charging current. The maximum continuous discharge current is 750mA, making it suitable for devices with moderate power requirements. A built-in PCM can be configured to provide protection against overcharge, over-discharge, over-current, short circuit, and other specified conditions.
Himax supports OEM/ODM customization for this 503442 LiPo battery, including battery dimensions, wires, connectors, PCM/protection circuits, and pack configurations according to project requirements. Sample development and bulk production are available for consumer electronics, IoT devices, wearable products, smart devices, and other compact electronic equipment.

Technical Parameters:

Parameter	Specification
Model	503442
Battery Type	Lithium Polymer (LiPo)
Nominal Voltage	3.7V
Rated Capacity	750mAh
Minimum Capacity	740mAh
Energy	2.78Wh
Max. Charge Voltage	4.2V
Standard Charging Current	150mA
Max. Charging Current	375mA
Standard Discharge Current	150mA
Max. Continuous Discharge Current	750mA
Discharge Cut-off Voltage	3.0V
Charge Method	CC/CV
Cycle Life	300 cycles
Pack Configuration	1S1P
Weight	Approx. 14g
Encapsulation	Aluminum-plastic film
Dimensions	Max. 5.0 × 34.5 × 42.5mm

PCM Protection

The battery can be equipped with a PCM to provide protection against overcharge, over-discharge, over-current, and short circuit conditions. Additional protection features can be customized according to the battery pack design and application requirements

Applications

This 3.7V 750mAh LiPo battery is suitable for compact electronic devices where size, weight, and rechargeable power are important, including:

FAQ

FAQ 1

What is the voltage and capacity of the 503442 LiPo battery?

The 503442 LiPo battery has a 3.7V nominal voltage and 750mAh rated capacity. Its energy rating is approximately 2.78Wh, making it suitable for compact rechargeable electronic devices.

FAQ 2

What is the charging voltage of a 3.7V 750mAh LiPo battery?

The maximum charging voltage is 4.2V. The battery uses a CC/CV charging method and should be charged with a charger specifically designed for a single-cell 3.7V LiPo battery.

FAQ 3

Can the 3.7V 750mAh LiPo battery be customized?

Yes. Himax supports OEM/ODM customization for the 503442 battery, including wires, connectors, PCM protection, packaging, and battery pack configurations according to project requirements.

FAQ 4

What applications use a 3.7V 750mAh LiPo battery?

The battery is suitable for compact electronic products such as wearable devices, IoT equipment, GPS trackers, Bluetooth accessories, smart devices, medical equipment, and other portable electronics.

FAQ 5

What is the maximum continuous discharge current of this LiPo battery?

The 503442 750mAh LiPo battery has a maximum continuous discharge current of 750mA according to the product specification. The appropriate discharge current should be selected according to the device requirements and battery protection design.

Custom 3.7V 750mAh LiPo Battery

Need a different battery size, connector, or protection configuration? Himax can customize the 503442 LiPo battery for your product design. We support wire and connector customization, PCM protection configuration, battery dimensions, packaging, and other OEM requirements. Our engineering team can evaluate your device requirements and recommend a suitable battery configuration for prototype and bulk production.

Download

Battery Wholesale

Your Grade A Battery Supplier

When purchasing wholesale LiPo batteries from Himax, you’re guaranteed superior quality, reliability, and cost-effectiveness at every stage. Every LiPo battery undergoes a thorough pre-sale inspection to ensure it meets the highest standards of performance, durability, and safety. This guarantees that the LiPo batteries you order are made from premium materials and undergo rigorous testing for reliability.

At Himax, we specialize in custom LiPo battery packs tailored to your exact needs, providing solutions for industries such as drones, RC vehicles, and robotics. With high energy density and fast discharge rates, LiPo batteries are ideal for applications requiring power efficiency and high performance. Our advanced BMS technology ensures protection against overcharging, short circuits, and overheating, delivering optimal safety. For bulk orders, our custom solutions offer an affordable and efficient option that meets your business needs, while detailed usage guidelines maximize battery lifespan and efficiency.

For bulk buyers, Himax stands out among LiPo battery suppliers by offering competitive wholesale pricing, along with comprehensive after-sales support, warranties, and technical assistance. Whether you need custom battery designs or long-term service agreements, we are dedicated to delivering cost-effective, reliable LiPo battery solutions that perform flawlessly over time.

IMPORTANT: PRE-USE GUIDELINES

DO: Perform a Pre-Installation Check!

Ensure a thorough examination before installation:

Inspect Each Cell: Visually check for any damage, swelling, leaks, or missing accessories. Do not use a cell if the casing is pierced, leaking, cracked, or otherwise visibly damaged.
Clean the Terminals: Ensure bus bars, wire terminal lugs, and terminals are clean and free from corrosion or debris. This reduces resistance between the DC terminal and cable connection.
Test Voltage and Capacity: Use a multimeter to check each cell’s voltage and internal resistance, and a battery analyzer or specialized tester to confirm capacity.
Top Balance Before Use: Charge all cells to full voltage before assembling them. We recommend using chargers designed specifically for LiPo cells.

DON’T:

Do Not Discharge Immediately After Delivery: Allow the battery to settle before use.
Do Not Mix Cells from Different Series: Even if they are the same type and capacity, avoid mixing cells from different manufacturing series or batches.
Avoid Loose Terminal Connections: Ensure all terminals are securely fastened to prevent performance issues.

Why Choose This Battery

Why Choose the 503442 3.7V 750mAh LiPo Battery?

Compact 503442 Form Factor

The compact pouch-cell design helps save internal space in portable and wearable electronic products.

750mAh Capacity

The 750mAh capacity provides a practical balance between battery size, weight, and operating runtime for compact devices.

1S1P LiPo Configuration

The single-cell configuration provides a 3.7V nominal voltage and 4.2V maximum charging voltage for compatible electronics.

OEM/ODM Customization

Customize connectors, wires, PCM protection, dimensions, and packaging to match your product design and production requirements.

Kindly Reminders: • Production time: 10 to 15 days for samples; 25 to 30 days for bulk orders. • Transportation methods: By couriers, air, truck, sea. • Payment terms: TT/PayPal/Assurance order.
