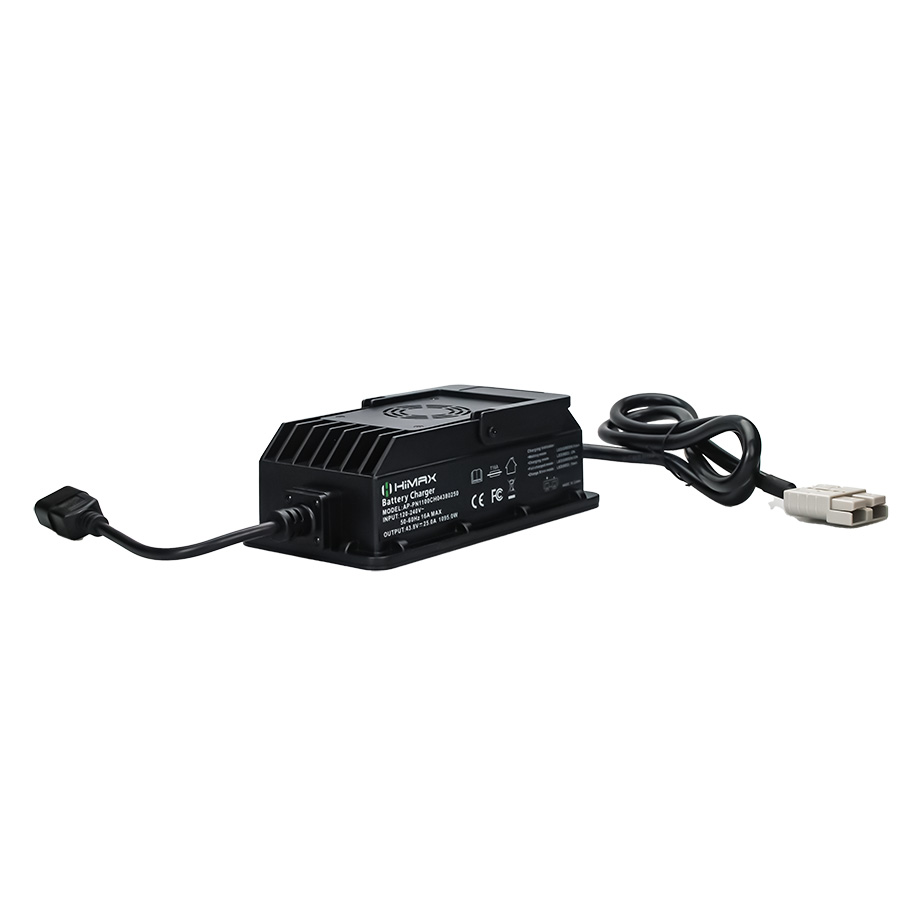

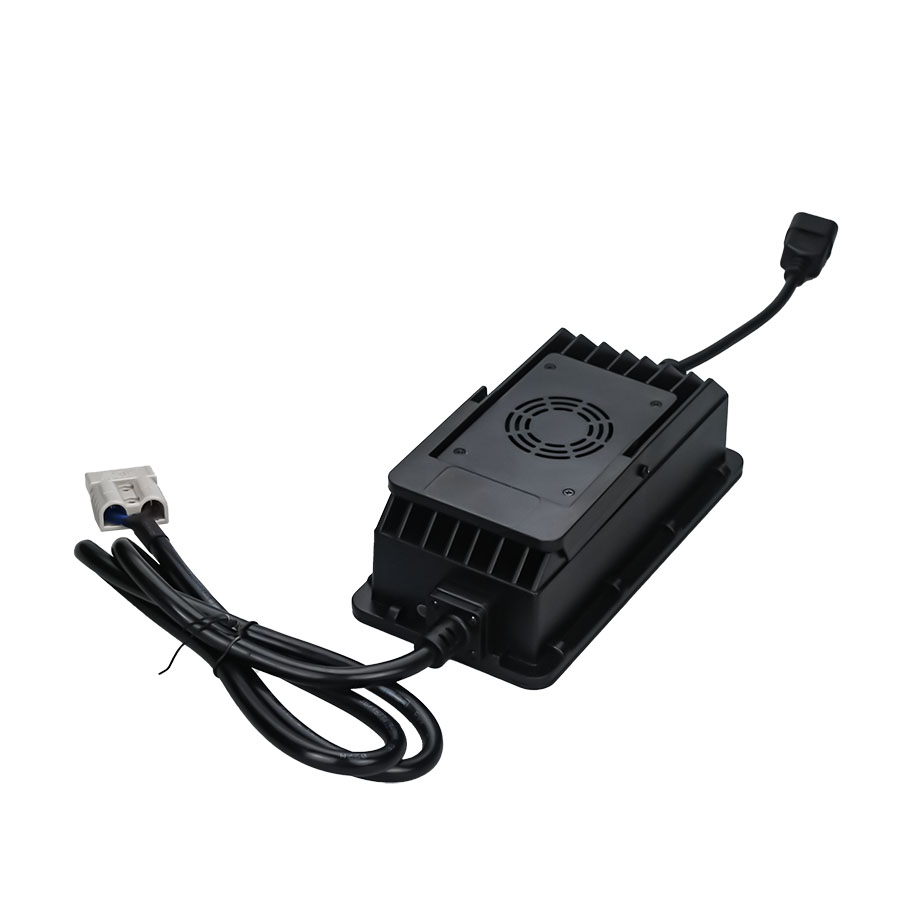

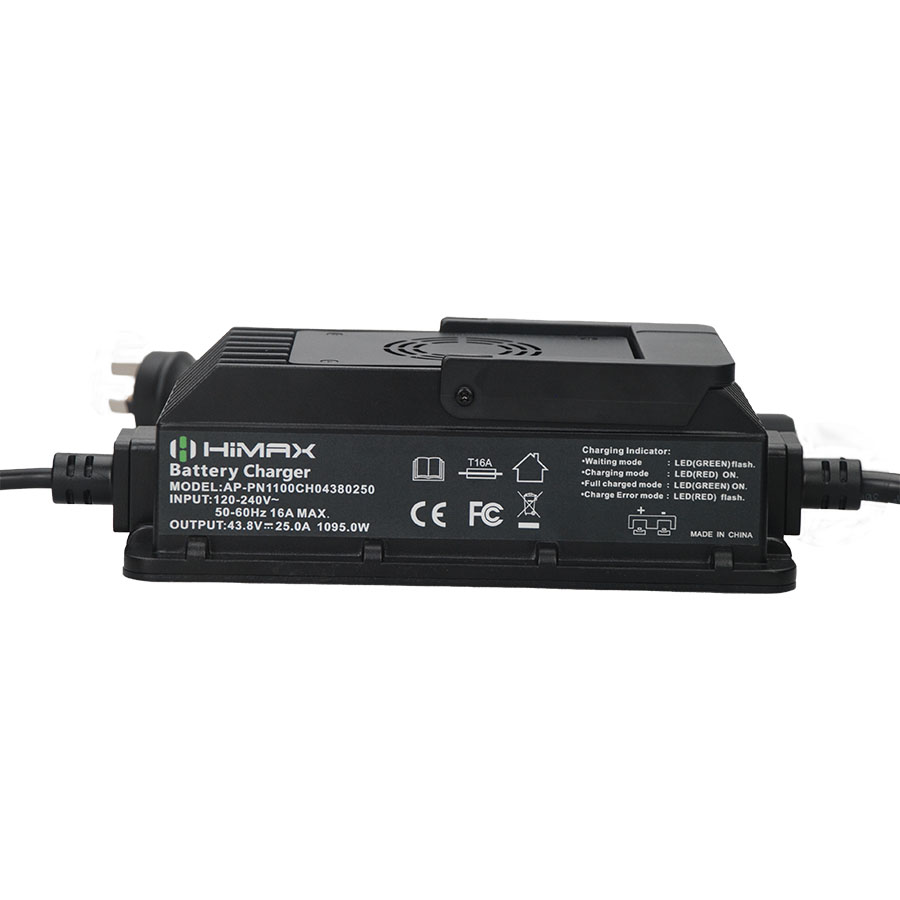

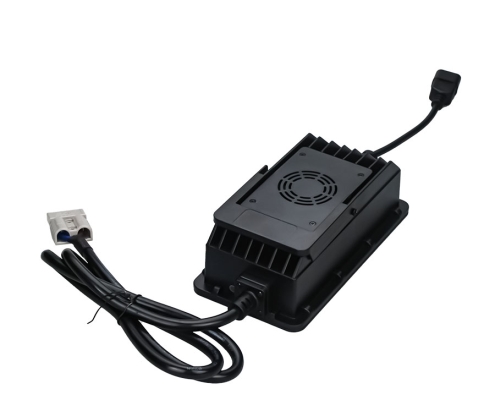

43.8V 25A 1095W LiFePO4 Battery Charger for Bulk & OEM Orders

Waterproof Smart Charger for 36V LiFePO4 Battery Packs — Golf Carts, E-Bikes, RVs, Marine, Trolling Motors & Energy Storage Systems

Charger Model: 43.8V 25A 1095W

Product Description:

43.8V/25A/1095W high-power output for fast, efficient charging of 36V LiFePO4 battery packs
3-stage intelligent charging (CC→CV→Float) with 0V/deep-sleep battery activation
IP66 waterproof aluminum alloy housing with active cooling fan — built for outdoor & marine use
6-layer safety protection: over-current, over-voltage, over-temperature, short-circuit, reverse-polarity, under-voltage
Flexible installation (portable / wall-mount / in-vehicle) with wide 90–260VAC input
CE/FCC/RoHS certified, 2-year warranty; OEM/ODM customization available for bulk orders

Technical Parameters:

Item	Specification

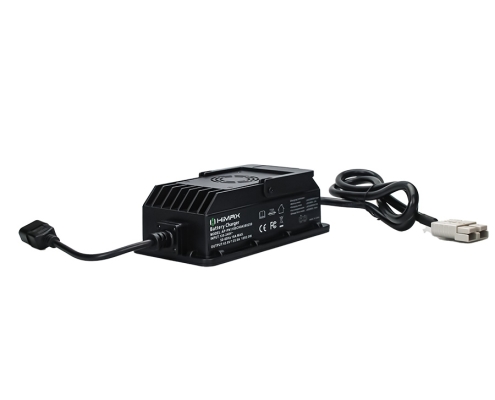

Model	Lithium battery charger: 43.8V 25A 1095W
Nominal Battery Voltage	36V LiFePO4 (12S)
Charging Voltage (CV)	43.8V
Max Charging Current	25A
Rated Power	1095W
Charging Curve	CC → CV → Float, MCU-controlled
AC Input Voltage	90–260VAC, 50/60Hz
Max AC Input Current	13A
Charging Efficiency	≥90%
Protection Class	IP66
Cooling	Fan-assisted active cooling
Operating Temperature	-20°C ~ +65°C
Storage Temperature	-40°C ~ +85°C
Humidity	5%–95% RH

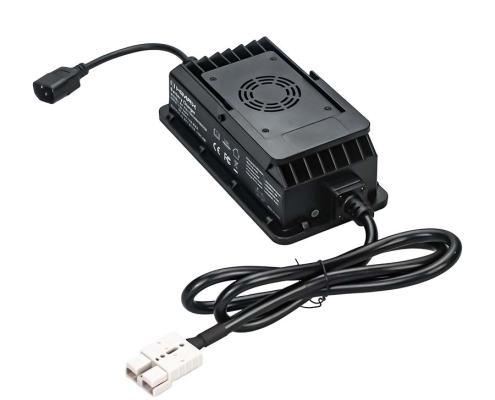

Housing Material	Die-cast aluminum alloy
Dimensions	281 × 145 × 80 mm
Net Weight	3.2 kg

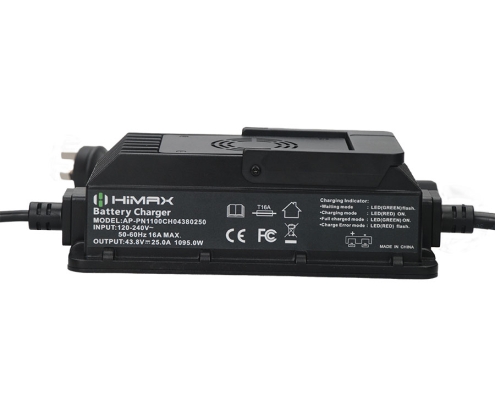

Output Connector	Anderson / Ring Terminal / Custom
Certification	CE, FCC, RoHS
Warranty	2 Years

Applications

Suitable for bulk and OEM/ODM sourcing across:

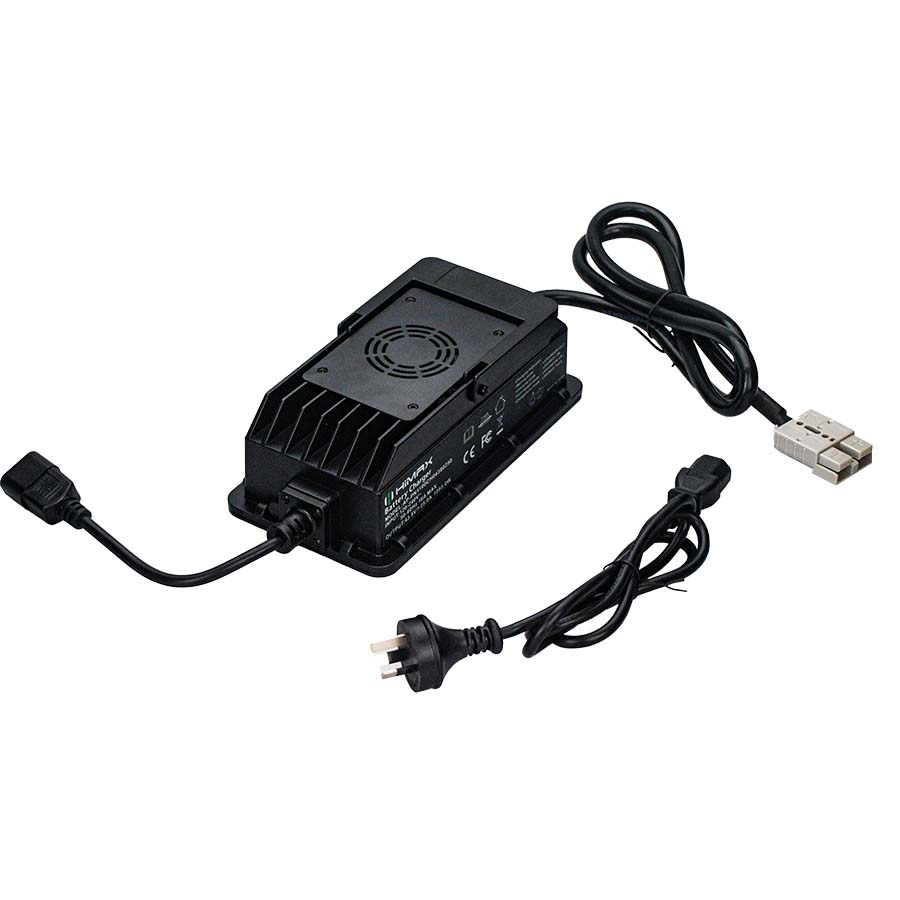

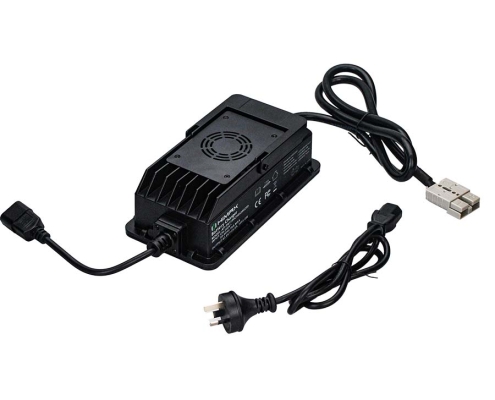

Golf carts & low-speed electric vehicles (LSV)
E-bikes & electric scooters (fleet/rental operators)
RVs & camper trailers
Marine / trolling motors
Material handling equipment (forklifts, AGVs)
Residential & commercial energy storage systems (ESS)
Solar off-grid power systems

Why Source From Himax

Factory-direct pricing— no middleman markup, tiered pricing available by order volume (MOQ 2pcs)
OEM/ODM capability— custom voltage/current specs, connectors, housing color, and private label/branding
In-house R&D and quality control— every unit tested for output accuracy, safety protection response, and IP rating compliance before shipment
Certification support— CE/FCC/RoHS documentation provided; assistance with additional country-specific certification on request
Reliable lead time & logistics— consistent batch quality, standard lead time of [25] days for orders under [50] units, FOB/CIF shipping support
Dedicated account support— technical documentation, spec sheets, and after-sales support for distributors and resellers

FAQ

Q: What battery types is this charger compatible with?

A: This charger is specifically designed for 36V (38.4V nominal) LiFePO4 battery packs with 12S configuration. It is not suitable for lead-acid, NCM, or other lithium chemistries unless a custom charging curve is configured.

Q: Can the charging voltage/current be customized for OEM orders?

A: Yes. Output voltage, current, connector type, and housing can be customized to meet OEM/ODM specifications. Please contact our sales team with your target battery pack specifications.

Q: What is the minimum order quantity (MOQ)?

A: [100 units per model]. Sample orders are available for quality evaluation before bulk commitment.

Q: What certifications does this charger carry, and can you support additional certification for our target market?

A: The standard unit is CE, FCC, and RoHS certified. We can support additional certification (e.g., UL, SAA, PSE) for qualifying order volumes — please inquire with your target market requirements.

Q: Does the charger include over-discharge/deep-sleep battery activation?

A: Yes, the charger includes a 0V activation function that safely reactivates BMS-protected batteries that have entered a deep-sleep or low-voltage protection state.

Q: What is the lead time for bulk orders?

Standard lead time is [2] weeks for orders under [50] units; larger volumes may require [4] weeks. Contact us for a quote based on your specific order quantity.

Q: Is private labeling/custom packaging available?

A: Yes, private label, custom color housing, and custom packaging are available for qualifying OEM orders.

Download

Quality Assurance

Every Himax Electronics battery charger undergoes 100% factory testing before shipment — covering output voltage/current accuracy, charging curve verification, and full safety-protection response (over-voltage, over-current, short-circuit, reverse-polarity). Our production line follows ISO 9001 quality management standards, with incoming material inspection, in-process quality control, and final aging tests to ensure consistent performance across every batch. All chargers are backed by CE/FCC/RoHS certification and a 2-year warranty, giving distributors and OEM partners confidence in every shipment, order after order.
