Samsung 35E 21.6V 91.8Ah Battery Pack: High-Capacity Power for Robotics
In the rapidly evolving world of automation, the most significant bottleneck for any battery operated robot isn’t software—it’s stamina. Whether deploying Autonomous Mobile Robots (AMRs) in a sprawling logistics warehouse or managing a fleet of industrial inspection robots, frequent charging cycles equate to devastating downtime.
Unlike standard consumer units powered by a typical Roomba robot battery or a simple robot vacuum cleaner replacement battery, industrial applications demand a completely different caliber of power. While a shark robot vacuum replacement battery might suffice for household chores, achieving true “24/7 readiness” and eliminating range anxiety in heavy-duty commercial robotics requires uncompromising Robot Battery Solutions.

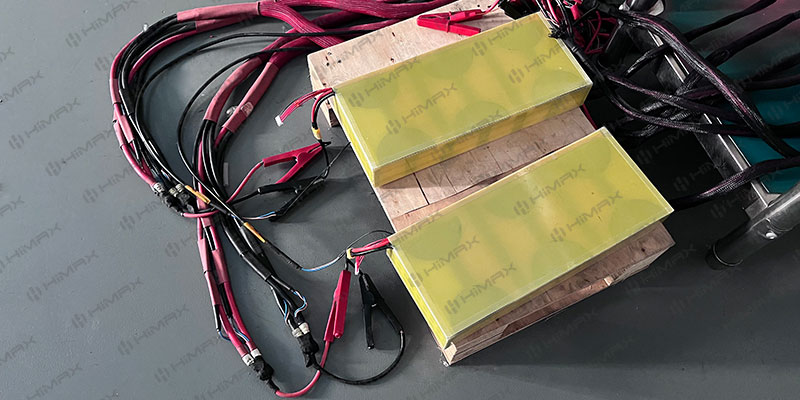

Today, we are diving deep into one of our most robust engineering achievements at Himax Electronics: the Samsung 35E 6S27P Battery Pack. Boasting a 21.6V platform and an enormous 91.8Ah capacity, this High Capacity 18650 Pack is designed to be the beating heart of next-generation robotics.
Quick Specification Summary
For R&D engineers and technical buyers, here is a quick glance at the core parameters of this power architecture:
| Feature | Specification |
| Cell Type | Samsung INR18650-35E (Grade A) |
| Configuration | 6S27P |
| Nominal Voltage | 21.6V |
| Rated Capacity | 91.8Ah (1982.88Wh) |
| Continuous Discharge Current | 40A |
| Application | AMRs, AGVs, Industrial Robots |
Technical Excellence: Engineering the Custom 6S27P Li-ion Assembly
Building a battery pack with 162 individual cells requires meticulous engineering. A custom 21.6V Li-ion pack of this scale is not simply about wiring cells together; it is about orchestrating perfect electrochemical harmony.
1. Uncompromising Cell Consistency in a 27P Configuration
When you place 27 cells in parallel to achieve a massive 91.8Ah capacity, cell consistency becomes the absolute most critical factor. Even a slight deviation in internal resistance (IR) or voltage among the parallel cells can lead to localized over-discharging, drastically reducing the pack’s overall lifespan.
At Himax Electronics, we exclusively source Grade-A Samsung INR18650-35E cells for this build. Before assembly, our Himax Electronics battery manufacturing process mandates rigorous automated sorting. We precisely match the IR and voltage of all 162 cells, ensuring that the 27P blocks share the electrical load perfectly evenly.
2. The 21.6V (6S) Platform: Engineered for Motor Stability
The 6S architecture provides a nominal 21.6V platform, which is the sweet spot for a wide range of DC motors used in service and industrial robotics. This voltage level ensures high-efficiency power delivery to the drive train, offering excellent torque control for heavy AMRs without suffering from the excessive voltage sag that plagues lower-tier battery designs.
3. Advanced Thermal Management for 162 Cells

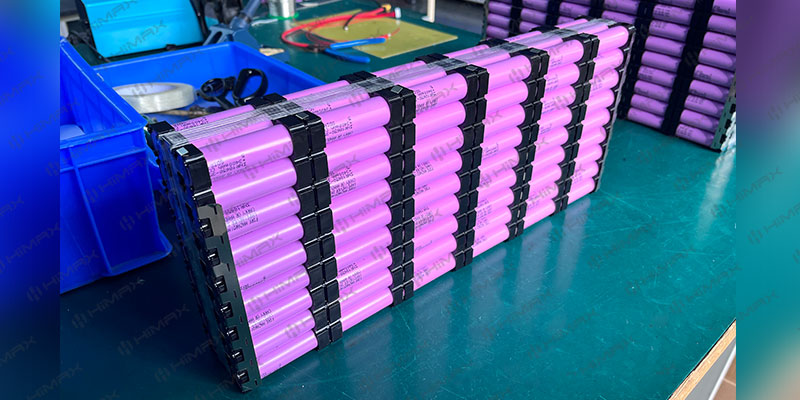

A High energy density robot power supply generating nearly 2kWh of energy must handle heat dissipation flawlessly, especially during continuous high-current discharge. In this 6S27P configuration, we utilize precision-engineered battery spacers. These brackets create calculated air gaps between every single cell, preventing thermal runaway and ensuring uniform heat dissipation across the entire pack, even in warm industrial environments.
Application Scenario: Redefining “All-Day” Robotic Operations
Let’s translate 1982.88Wh into real-world operational value.

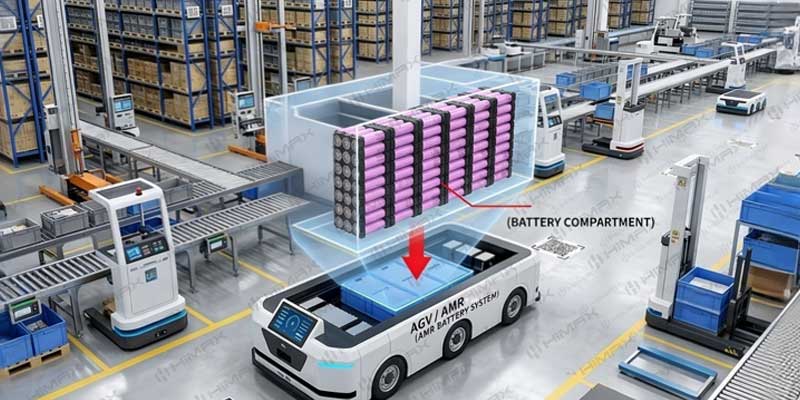

Consider a typical warehouse delivery AMR operating at an average continuous power draw of 100W.
- Calculation:1982.88Wh ÷ 100W ≈ 19.8 Hours of continuous runtime.
For logistics and warehousing managers, this translates to game-changing ROI. A nearly 20-hour runtime means a robot can comfortably complete two full 8-hour shifts without needing to return to a charging dock. By utilizing this Industrial AMR battery assembly, warehouse operators can drastically reduce the total number of robots needed in their fleet, eliminate mid-shift charging bottlenecks, and maximize overall facility throughput.
Quality & Reliability: The Himax B2B Promise
For R&D engineers and technical procurement teams, a battery’s spec sheet is only as good as its safety systems and manufacturing quality.
- Intelligent BMS Integration:We integrate a highly responsive Battery Management System (BMS) specifically calibrated for the 6S27P topology. It provides microsecond-level protection against overcharge, over-discharge, and short circuits.

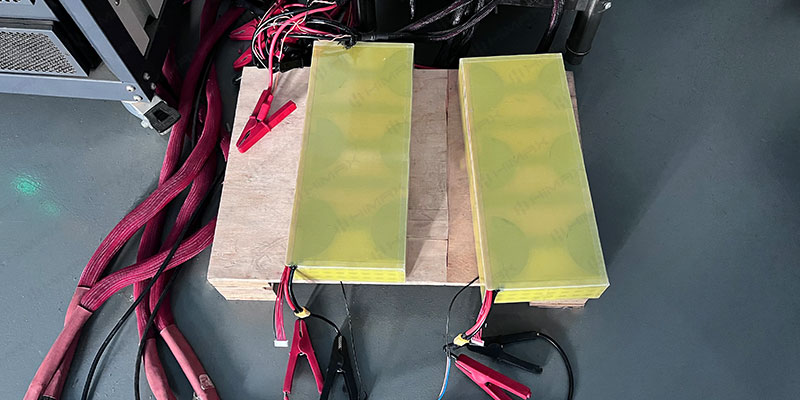

- Precision Laser Welding:To handle the high-current demands of AMR motors, we utilize automated laser welding for the nickel busbars. This guarantees low-resistance connections and extreme mechanical stability against the constant vibrations of a moving robot.
- Global Compliance & Testing:Every single 21.6V pack undergoes comprehensive aging tests and strict QA validations before it leaves our facility. Our manufacturing process aligns with UN38.3 and IEC62133 standards, ensuring safe global shipping and operational compliance.
Upgrade Your Fleet’s Power Today
Don’t let subpar power solutions dictate your robot’s performance limits. Whether you are designing a new line of heavy-duty AMRs or upgrading an existing fleet’s power architecture, the Samsung 35E 6S27P battery pack delivers the uncompromising energy density you need.
Ready to integrate 1.9kWh of reliable power?
Contact Himax Electronics today to request the detailed technical specification sheet for the 21.6V 91.8Ah battery pack, or speak with our engineering team about a custom Lithium-ion solution tailored to your exact chassis and voltage requirements.
Author: Shawn, Battery Engineer – Power System Design
Published: April 8th, 2026
